Fedora 33 中使用百度网盘Linux版的艰难历程
- Authors
- Name
- ttyS3
问题
百度网盘推出Linux客户端已经有一段时间了。 期间，在Fedora32时我就已经给他们提过一个启动即crash的问题，后面一直也没修复.
这都 Fedora 33了，我又提了一次，而且还把gdb的backtrace发给了他们，显示已经处理。 实际上几个月过去了都没见动静。只能自己动手，丰衣足食了。
解决
老灯注意到, 百度网盘链接的库都是比较老的，因此那个客户端在Ubuntu 18.04 上面肯定是可以正常运行。
那个 rpm 包压根不是对标最新的Fedora的，而是给那些基于RHEL的同样使用rpm包管理的古董国产操作系统使用的。
因此老灯下载 baidunetdisk_3.5.0_amd64.deb，并解压出实际的程序.

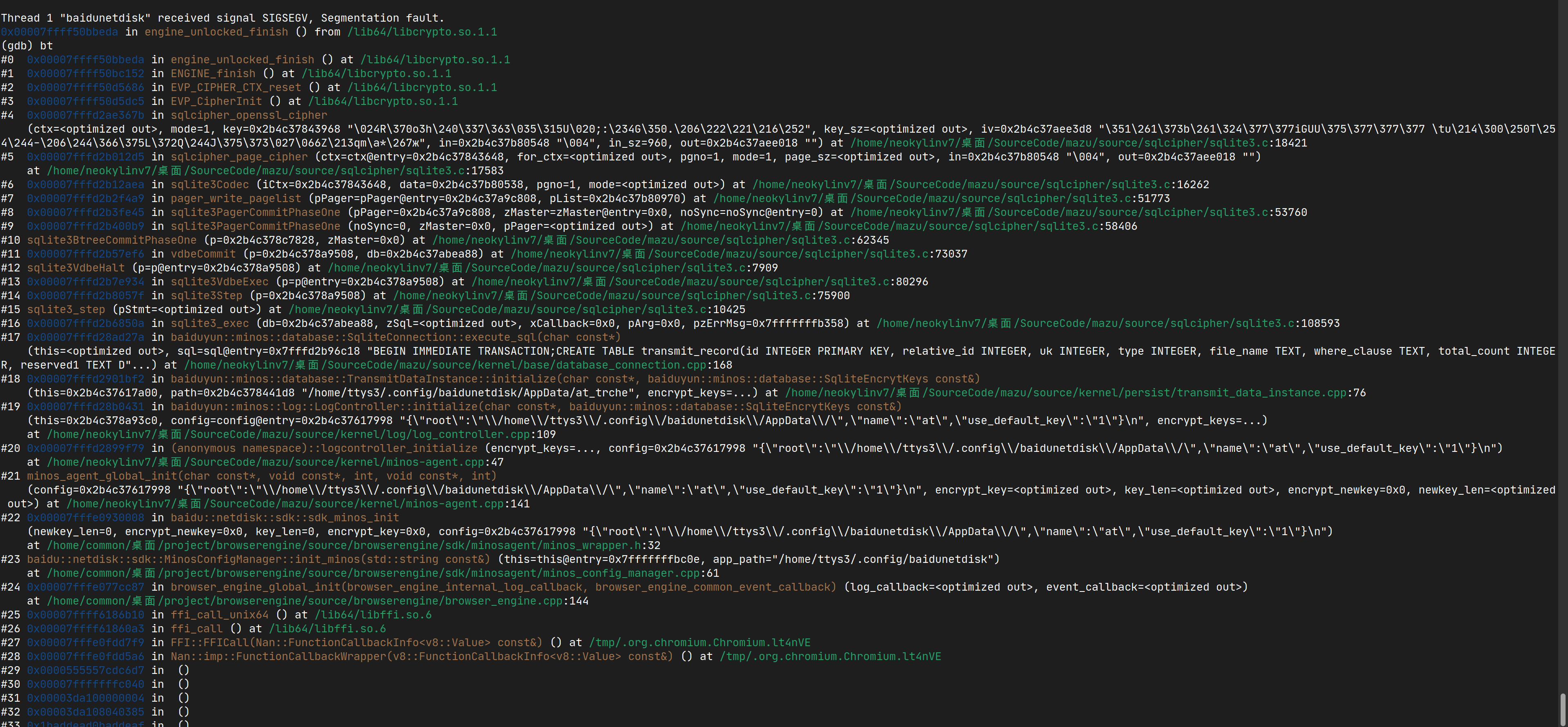

首先我们跑一下，看看bt 吧：
Thread 1 "baidunetdisk" received signal SIGSEGV, Segmentation fault.
0x00007ffff5096179 in EVP_MD_CTX_clear_flags () from /lib64/libcrypto.so.1.1
(gdb) bt
#0 0x00007ffff5096179 in EVP_MD_CTX_clear_flags () at /lib64/libcrypto.so.1.1
#1 0x00007ffff508b261 in EVP_DigestInit_ex () at /lib64/libcrypto.so.1.1
#2 0x00007ffff50ab1e8 in HMAC_Init_ex () at /lib64/libcrypto.so.1.1
#3 0x00007fffd1a92766 in sqlcipher_openssl_hmac
(ctx=<optimized out>, hmac_key=0x227a99ce02d8 "\f>@)YUj\001\346\063vr\312\062\016\243\232\312\334\324\302\027\201-\330ƨ\213É<)", key_sz=32, in=0x227a9a00b548 "\250\235J_h1E\214\v\033u\266\342P.\240\063\244\337V\313\360T\rqu<c:\303E\234\061-\216\365\255\033Dz\203\b\001\027\257\215\033\070{i9H\376\346H\223DB\244\001\314d\302\022\310\376\315\b\343\"\362e\227\252T\363\215\351\323\005\271\022ǎ\340 \205\a墭\240ZЯ\266\330 \335\334\314ё\255\262a+N\367\021\214\322\b\021)\356\362=\201\310\354\005\273o\250a)$\254z\226\371\322\003n\241\244Z\032\277\217\060\225\353.\276\001\206;\245Ȩ\245\211㓫\326\313\370V\360\327\t\310RX\362\026P\223\302\032\027\351\067\003|\034\024\r\021R\233\334R=\376&\022\b\235\033\313\315\361mW", <incomplete sequence \310>..., in_sz=976, in2=0x7fffffffa910 "\001", in2_sz=4, out=0x227a99f925e8 "")
at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:18404
#4 0x00007fffd1ab03aa in sqlcipher_page_hmac
(out=0x227a99f925e8 "", in_sz=<optimized out>, in=0x227a9a00b548 "\250\235J_h1E\214\v\033u\266\342P.\240\063\244\337V\313\360T\rqu<c:\303E\234\061-\216\365\255\033Dz\203\b\001\027\257\215\033\070{i9H\376\346H\223DB\244\001\314d\302\022\310\376\315\b\343\"\362e\227\252T\363\215\351\323\005\271\022ǎ\340 \205\a墭\240ZЯ\266\330 \335\334\314ё\255\262a+N\367\021\214\322\b\021)\356\362=\201\310\354\005\273o\250a)$\254z\226\371\322\003n\241\244Z\032\277\217\060\225\353.\276\001\206;\245Ȩ\245\211㓫\326\313\370V\360\327\t\310RX\362\026P\223\302\032\027\351\067\003|\034\024\r\021R\233\334R=\376&\022\b\235\033\313\315\361mW", <incomplete sequence \310>..., pgno=<optimized out>, ctx=0x227a99d3f078) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:17506
#5 sqlcipher_page_cipher
(ctx=ctx@entry=0x227a99d095a8, for_ctx=for_ctx@entry=0, pgno=<optimized out>, mode=mode@entry=0, page_sz=1008, in=0x227a9a00b548 "\250\235J_h1E\214\v\033u\266\342P.\240\063\244\337V\313\360T\rqu<c:\303E\234\061-\216\365\255\033Dz\203\b\001\027\257\215\033\070{i9H\376\346H\223DB\244\001\314d\302\022\310\376\315\b\343\"\362e\227\252T\363\215\351\323\005\271\022ǎ\340 \205\a墭\240ZЯ\266\330 \335\334\314ё\255\262a+N\367\021\214\322\b\021)\356\362=\201\310\354\005\273o\250a)$\254z\226\371\322\003n\241\244Z\032\277\217\060\225\353.\276\001\206;\245Ȩ\245\211㓫\326\313\370V\360\327\t\310RX\362\026P\223\302\032\027\351\067\003|\034\024\r\021R\233\334R=\376&\022\b\235\033\313\315\361mW", <incomplete sequence \310>..., out=0x227a99f92218 "") at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:17556
#6 0x00007fffd1ac1a84 in sqlite3Codec (iCtx=0x227a99d095a8, data=0x227a9a00b538, pgno=1, mode=3) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:16249
#7 0x00007fffd1a93595 in readDbPage (pPg=pPg@entry=0x227a9a00b970, iFrame=<optimized out>) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:50416
#8 0x00007fffd1adf61e in sqlite3PagerGet (pPager=0x227a99f44008, pgno=pgno@entry=1, ppPage=ppPage@entry=0x7fffffffaa68, flags=flags@entry=0)
at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:52923
#9 0x00007fffd1ae1d08 in btreeGetPage (flags=0, ppPage=<synthetic pointer>, pgno=1, pBt=0x227a99fb3648) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:60539
#10 lockBtree (pBt=pBt@entry=0x227a99fb3648) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:61441
#11 0x00007fffd1ae5af0 in sqlite3BtreeBeginTrans (p=0x227a99d683c8, wrflag=0) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:61799
#12 0x00007fffd1b17fe8 in sqlite3InitOne (db=db@entry=0x227a99f67e08, iDb=iDb@entry=0, pzErrMsg=pzErrMsg@entry=0x227a99c81090) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:112652
#13 0x00007fffd1b1822c in sqlite3Init (db=db@entry=0x227a99f67e08, pzErrMsg=pzErrMsg@entry=0x227a99c81090) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:112831
#14 0x00007fffd1b1a098 in sqlite3ReadSchema (pParse=0x227a99c81088) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:112868
#15 sqlite3LocateTable (pParse=0x227a99c81088, isView=0, zName=0x227a99fea708 "sqlite_master", zDbase=0x0) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:32141
#16 0x00007fffd1b1a84a in selectExpander (pWalker=0x7fffffffadb0, p=0x227a99fea208) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:117593
#17 0x00007fffd1aa2e02 in sqlite3WalkSelect (pWalker=pWalker@entry=0x7fffffffadb0, p=p@entry=0x227a99fea208) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:87991
#18 0x00007fffd1aa327f in sqlite3WalkSelect (p=0x227a99fea208, pWalker=0x7fffffffadb0) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:87988
#19 sqlite3SelectExpand (pSelect=0x227a99fea208, pParse=0x227a99c81088) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:52306
#20 sqlite3SelectPrep (pParse=0x227a99c81088, p=0x227a99fea208, pOuterNC=0x0) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:52392
#21 0x00007fffd1af7762 in sqlite3Select (pParse=pParse@entry=0x227a99c81088, p=0x227a99fea208, pDest=pDest@entry=0x7fffffffb0e0) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:118172
#22 0x00007fffd1b1250d in yy_reduce (yyruleno=111, yypParser=0x227a99abe708) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:133385
#23 sqlite3Parser (yyp=yyp@entry=0x227a99abe708, yymajor=yymajor@entry=1, yyminor=..., pParse=pParse@entry=0x227a99c81088) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:3399
#24 0x00007fffd1b15fbe in sqlite3RunParser
(pParse=pParse@entry=0x227a99c81088, zSql=zSql@entry=0x7fffd1b3c178 "SELECT name FROM sqlite_master WHERE type='table' AND name=:tbl_name", pzErrMsg=pzErrMsg@entry=0x7fffffffb1f8)
at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:135410
#25 0x00007fffd1b169a9 in sqlite3Prepare
(db=db@entry=0x227a99f67e08, zSql=zSql@entry=0x7fffd1b3c178 "SELECT name FROM sqlite_master WHERE type='table' AND name=:tbl_name", nBytes=nBytes@entry=-1, saveSqlFlag=saveSqlFlag@entry=1, pReprepare=pReprepare@entry=0x0, ppStmt=ppStmt@entry=0x7fffffffb378, pzTail=0x0) at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:113061
#26 0x00007fffd1b16ea0 in sqlite3LockAndPrepare
(db=0x227a99f67e08, zSql=0x7fffd1b3c178 "SELECT name FROM sqlite_master WHERE type='table' AND name=:tbl_name", nBytes=-1, saveSqlFlag=1, pOld=0x0, ppStmt=0x7fffffffb378, pzTail=0x0)
at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:113153
#27 0x00007fffd1b173b6 in sqlite3_prepare_v2 (db=<optimized out>, zSql=<optimized out>, nBytes=<optimized out>, ppStmt=<optimized out>, pzTail=<optimized out>)
--Type <RET> for more, q to quit, c to continue without paging--c
at /home/neokylinv7/桌面/SourceCode/mazu/source/sqlcipher/sqlite3.c:113229
#28 0x00007fffd185cf6d in baiduyun::minos::database::SqliteStatement::prepare(char const*) (this=this@entry=0x7fffffffb360, sql=sql@entry=0x7fffd1b3c178 "SELECT name FROM sqlite_master WHERE type='table' AND name=:tbl_name") at /home/neokylinv7/桌面/SourceCode/mazu/source/kernel/base/database_statement.cpp:34
#29 0x00007fffd185c3e5 in baiduyun::minos::database::SqliteConnection::table_existed(char const*) (this=<optimized out>, table_name=table_name@entry=0x7fffd1b983f2 "version") at /home/neokylinv7/桌面/SourceCode/mazu/source/kernel/base/database_connection.cpp:134
#30 0x00007fffd18b0bde in baiduyun::minos::database::TransmitDataInstance::initialize(char const*, baiduyun::minos::database::SqliteEncrytKeys const&) (this=0x227a999be900, path=0x227a99d3f0f8 "/home/ttys3/.config/baidunetdisk/AppData/at_trche", encrypt_keys=...) at /home/neokylinv7/桌面/SourceCode/mazu/source/kernel/persist/transmit_data_instance.cpp:74
#31 0x00007fffd185f431 in baiduyun::minos::log::LogController::initialize(char const*, baiduyun::minos::database::SqliteEncrytKeys const&) (this=0x227a99d4e3c0, config=config@entry=0x227a995bbe98 "{\"root\":\"\\/home\\/ttys3\\/.config\\/baidunetdisk\\/AppData\\/\",\"name\":\"at\",\"use_default_key\":\"1\"}\n", encrypt_keys=...) at /home/neokylinv7/桌面/SourceCode/mazu/source/kernel/log/log_controller.cpp:109
#32 0x00007fffd1848f79 in (anonymous namespace)::logcontroller_initialize (encrypt_keys=..., config=0x227a995bbe98 "{\"root\":\"\\/home\\/ttys3\\/.config\\/baidunetdisk\\/AppData\\/\",\"name\":\"at\",\"use_default_key\":\"1\"}\n") at /home/neokylinv7/桌面/SourceCode/mazu/source/kernel/minos-agent.cpp:47
#33 minos_agent_global_init(char const*, void const*, int, void const*, int) (config=0x227a995bbe98 "{\"root\":\"\\/home\\/ttys3\\/.config\\/baidunetdisk\\/AppData\\/\",\"name\":\"at\",\"use_default_key\":\"1\"}\n", encrypt_key=<optimized out>, key_len=<optimized out>, encrypt_newkey=0x0, newkey_len=<optimized out>) at /home/neokylinv7/桌面/SourceCode/mazu/source/kernel/minos-agent.cpp:141
#34 0x00007fffe08e5008 in baidu::netdisk::sdk::sdk_minos_init (newkey_len=0, encrypt_newkey=0x0, key_len=0, encrypt_key=0x0, config=0x227a995bbe98 "{\"root\":\"\\/home\\/ttys3\\/.config\\/baidunetdisk\\/AppData\\/\",\"name\":\"at\",\"use_default_key\":\"1\"}\n") at /home/common/桌面/project/browserengine/source/browserengine/sdk/minosagent/minos_wrapper.h:32
#35 baidu::netdisk::sdk::MinosConfigManager::init_minos(std::string const&) (this=this@entry=0x7fffffffbc5e, app_path="/home/ttys3/.config/baidunetdisk") at /home/common/桌面/project/browserengine/source/browserengine/sdk/minosagent/minos_config_manager.cpp:61
#36 0x00007fffe0731c87 in browser_engine_global_init(browser_engine_internal_log_callback, browser_engine_common_event_callback) (log_callback=<optimized out>, event_callback=<optimized out>) at /home/common/桌面/project/browserengine/source/browserengine/browser_engine.cpp:144
#37 0x00007ffff6159b10 in ffi_call_unix64 () at /lib64/libffi.so.6
#38 0x00007ffff61590a3 in ffi_call () at /lib64/libffi.so.6
#39 0x00007fffe0f927f9 in FFI::FFICall(Nan::FunctionCallbackInfo<v8::Value> const&) () at /tmp/.org.chromium.Chromium.gNqpPK
#40 0x00007fffe0f925a6 in Nan::imp::FunctionCallbackWrapper(v8::FunctionCallbackInfo<v8::Value> const&) () at /tmp/.org.chromium.Chromium.gNqpPK
#41 0x0000555557cdc6d7 in ()
目测翻车在libcrypto.so.1.1, 而且是跟sqlite加密有关.
我们把baidunetdisk动态链接到相关的加密库都找出来:
❯ ldd baidunetdisk | grep -i -E 'ssl|crypt'
libgcrypt.so.20 => /lib64/libgcrypt.so.20 (0x00007fa18d693000)
libk5crypto.so.3 => /lib64/libk5crypto.so.3 (0x00007fa18d3cd000)
libcrypto.so.1.1 => /lib64/libcrypto.so.1.1 (0x00007fa18d0c0000)
经验告诉我，这个baidunetdisk挂的原因是， Fedora 33上面的包都比较新，尤其是 openssl 库. 因此，解决办法是，去下载老版本的 Ubuntu 18.04 的包，然后把so文件取出来，强制baidunetdisk使用这些旧版本的库即可.
ldd 一下很容易找出依赖关系: libkrb5.so.3 -> libk5crypto.so.3 -> libcrypto.so.1.1
老灯下载了以下包:
https://ubuntu.pkgs.org/18.04/ubuntu-main-amd64/libkrb5support0_1.16-2build1_amd64.deb.html
https://ubuntu.pkgs.org/18.04/ubuntu-main-amd64/libk5crypto3_1.16-2build1_amd64.deb.html
https://ubuntu.pkgs.org/18.04/ubuntu-main-amd64/libkrb5-3_1.16-2build1_amd64.deb.html
https://ubuntu.pkgs.org/18.04/ubuntu-main-amd64/libgssapi-krb5-2_1.16-2build1_amd64.deb.html
http://archive.ubuntu.com/ubuntu/pool/main/o/openssl/libssl1.1_1.1.0g-2ubuntu4_amd64.deb
测试下， krb 的包已经成功加载:
❯ env LD_LIBRARY_PATH=$(pwd) ldd ./baidunetdisk | grep /opt/
libffmpeg.so => /opt/baidunetdisk/./libffmpeg.so (0x00007f8fc36a8000)
libgssapi_krb5.so.2 => /opt/baidunetdisk/./libgssapi_krb5.so.2 (0x00007f8fc1588000)
libkrb5.so.3 => /opt/baidunetdisk/./libkrb5.so.3 (0x00007f8fc0bf4000)
libk5crypto.so.3 => /opt/baidunetdisk/./libk5crypto.so.3 (0x00007f8fc09c2000)
libkrb5support.so.0 => /opt/baidunetdisk/./libkrb5support.so.0 (0x00007f8fc07af000)
编辑 /usr/share/applications/baidunetdisk.desktop, 将Exec=/opt/baidunetdisk/baidunetdisk --no-sandbox %U 修改成：
Exec=/bin/env LD_LIBRARY_PATH=/home/ttys3/Apps/baidunetdisk /home/ttys3/Apps/baidunetdisk/baidunetdisk --no-sandbox %U
注意，这里老灯把baidu的目录放在/home/ttys3/Apps/baidunetdisk, 测试过程中发现放在默认的 /opt/baidunetdisk 无法成功运行(有可能跟selinux有关，暂时没空看了，解决了问题完事)。
